Description

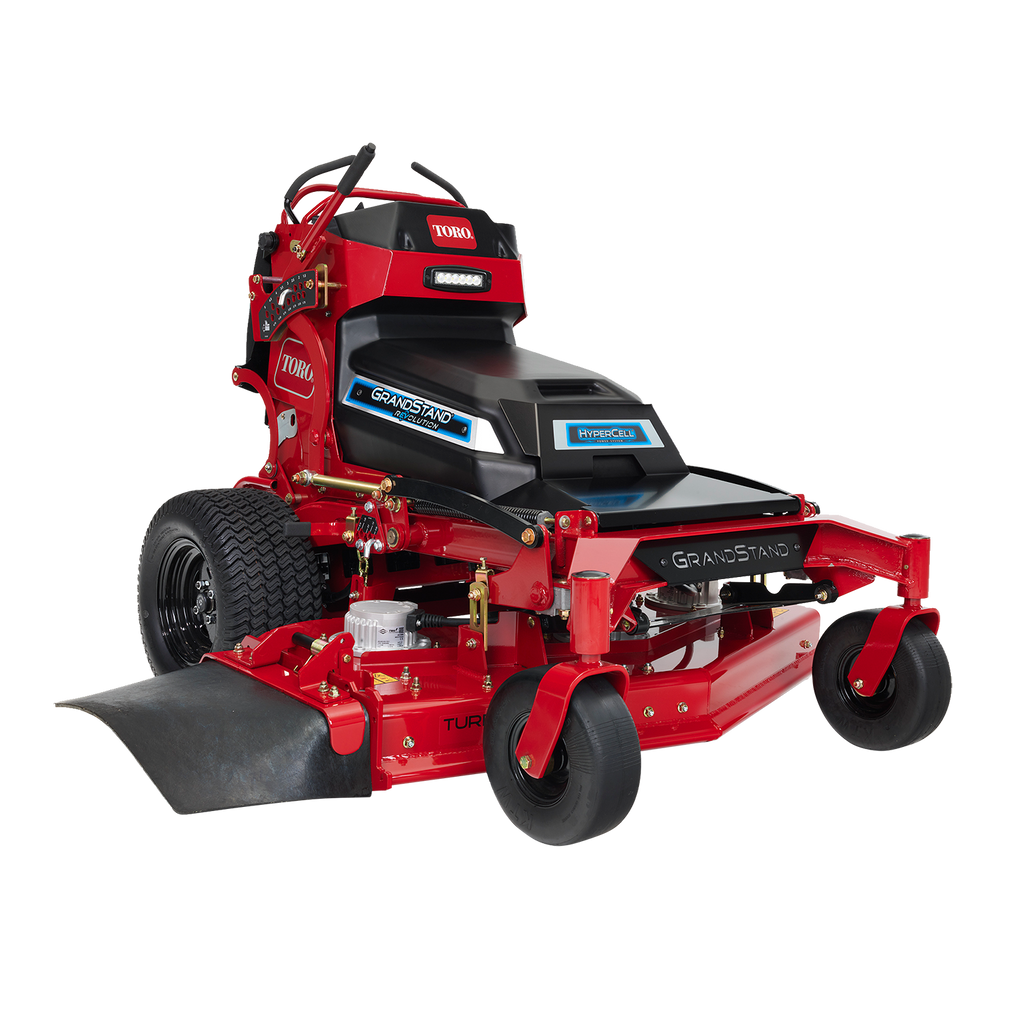

The future of lawn care and your business is here. The Revolution Series 132 cm GrandStand® is built on the same proven GrandStand chassis and TURBO FORCE® deck that you’ve trusted for years but with a quieter, eco-friendlier design to deliver lower overall cost over the machine’s lifetime.
Powered by Toro’s HyperCell® Power System®, the Battery Management System (BMS) allows for longer run times and quick charging to maximise productivity. HyperCell® is built to run cooler than other power systems for long-lasting efficiency. With all-day runtime from the Toro developed HyperCell® battery system, you can expect to power through your day, every day.
The patent pending software in the drive-lever controls enables smooth, reliable handling.
| Battery | HyperCell® |
| Battery Capacity | 18.4 kWh |
| Runtime | 4 - 7+ hrs |
| Charge Time | 12 hrs |
| Transmission | Planetary Gearset |
| Ground Speed | 16.1 km/h |
| Caster Tyres | 11" x 4" - 5" (27.9 x 10.2 - 12.7 cm) Flat-free semi-pneumatic |
| Drive Tyres | 20" x 10" x 10" (51 x 25.4 - 25.4 cm) Super Turf |
| Cutting Width | 132 cm (52") |
| Deck Design | 7-gauge TURBO FORCE® side discharge |
| Spindle Housing | 22.9 cm diameter cast aluminum with blade retainer |
| Blade Tip Speed | Adjustable |
| Discharge Chute | Rubber |
| Height of Cut | 3.8 cm – 12.7 cm in 6 mm increments |
| Seat | N/A |
| Armrests | N/A |
| Roll-Over Protection (ROPS) | N/A |
| Cup Holder | N/A |
| Hour Meter | Standard |
| Lighting | Standard |
| Knee Pad | Deluxe durable |
| Operator Platform | Foldable w ith bumper cushions |
| Weight | 503 kg |
| Warranty | 5 years or 1200 hours*** ***Whichever occurs first. No hour limit on the first 2 years. Refer to Operator’s Manual for further details. |
