Description

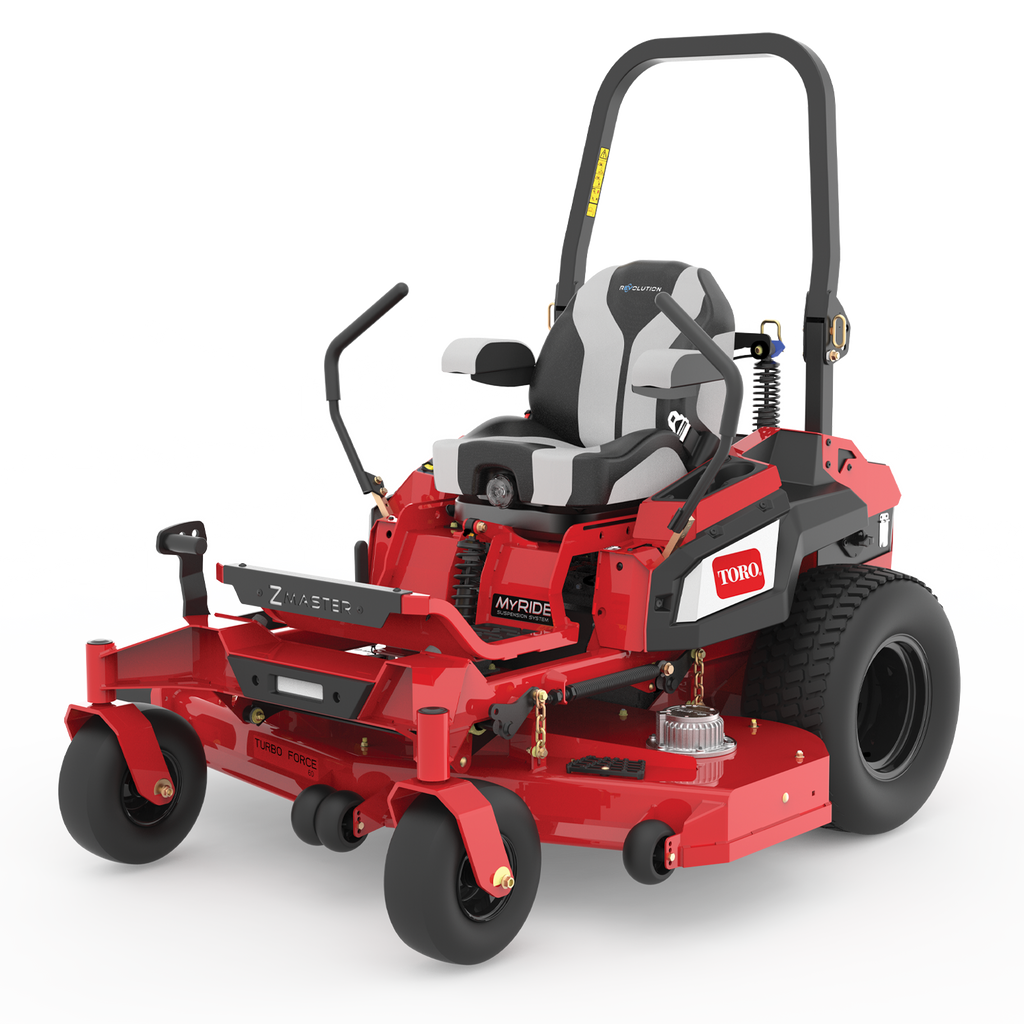

The future of lawn care and your business is here. The Revolution Series 122 cm Z Master® MyRIDE® is built on the same proven Z Master chassis and TURBO FORCE® deck that you’ve trusted for years but with a quieter, eco-friendlier design to deliver lower overall cost over the machine’s lifetime.
Powered by Toro’s HyperCell® Power System®, the Battery Management System (BMS) allows for longer run times and quick charging to maximise productivity. HyperCell® is built to run cooler than other power systems for long-lasting efficiency. With all-day runtime from the Toro developed HyperCell® battery system, you can expect to power through your day, every day.
The proven MyRIDE® Suspension System feature provides a superior ride. The fully suspended operator platform allows up to 7.6 cm of travel and reduces impacts, bumps and vibrations. Operators can easily and quickly adjust rear-shock ride settings to personal ride preferences without tools!
| Battery | HyperCell® |
| Battery Capacity | 23.4 kWh |
| Runtime | 4 - 7+ hrs |
| Charge Time | 8 hrs |
| Transmission | Planetary Gearset |
| Ground Speed | 19.3 km/h |
| Caster Tyres | 13" x 6.5" - 6" (33 x 16.5 - 15.2 cm) Flat-free semi-pneumatic |
| Drive Tyres | 24" x 9.5" x 12" (61 x 24.1 - 30.5 cm) Super Turf |
| Cutting Width | 122 cm (48") |
| Deck Design | 7-gauge TURBO FORCE® side discharge |
| Spindle Housing | 22.9 cm diameter cast aluminum with blade retainer |
| Blade Tip Speed | Adjustable |
| Discharge Chute | Rubber |
| Height of Cut | 3.8 cm – 12.7 cm in 6 mm increments |
| Seat | Deluxe comfort with armrests |
| Armrests | Standard |
| Roll-Over Protection (ROPS) | Standard - Square tube / Pin with lanyard |
| Cup Holder | Standard |
| Hour Meter | Standard |
| Lighting | Standard |
| Knee Pad | N/A |
| Operator Platform | N/A |
| Weight | 614.2 kg |
| Warranty | 5 years or 1200 hours*** ***Whichever occurs first. No hour limit on the first 2 years. Refer to Operator’s Manual for further details. |
